THREE™

Regular price $2,099.00 CAD
Regular price $3,359.00 CAD Sale price $2,099.00 CAD
Sale Sold out
Shipping calculated at checkout.

Focus on Perfection

THREE by Matter and Form is a new and better kind of 3D scanner.

Software-focused 13 MP Sony cameras give perfect image clarity, for perfect 3D scans, every time.

THREE's unique ChromaSpec™ technology uses the full spectrum of visible light to perfectly capture geometry and any color.

Standalone, self-computing software is built-in. There's nothing to download or install, and THREE works with every computer and operating system.

Are you ready to step up to a higher level of 3D scanning quality?

THREE is ready for you.


Standalone Self-Computing

Everything you need for incredible 3D scanning is self-contained in THREE. THREE connects to your network with WIFI or Ethernet and provides software through its built-in web server.

✔️ No software to install
✔️ No cloud service
✔️ No subscription fee
✔️ No internet connection required



Compatible with Everything and Future Proof

✔️ Runs in any modern web browser
✔️ Runs on any operating system
✔️ Works with any device that supports Chrome, Safari, Firefox or Edge web browsers.
✔️ Will continue to work regardless of future Windows or Mac OS updates


Full API and Edge Computing

THREE is also a fully-functioning edge computing device with popular programming tools integrated. Supported by open source projects and a full API, you can develop your own computer vision and scanning projects, and THREE will run them for you.

Free Shipping

Free shipping to the US, Canada, the UK, and the EU

2 Year Warranty

Experience peace of mind with the THREE 3D Scanner, backed by our impressive 2-year warranty, ensuring long-lasting performance and support from our dedicated team.

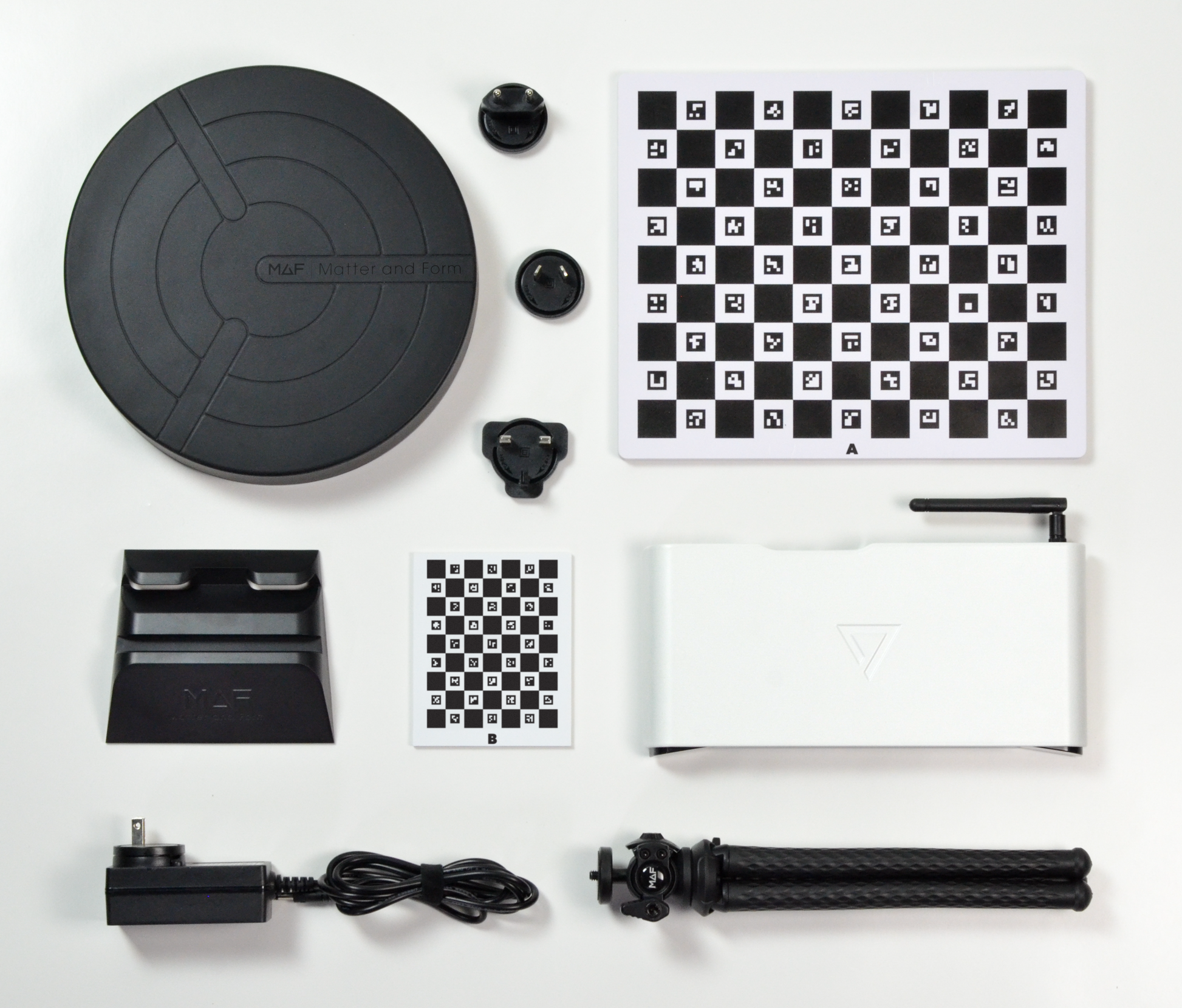

Included with THREE™

1. Wired turntable, with silicone top. Capable of turning up to 20 lbs
2. International power adapter plugs
3. Large calibration card
4. Calibration card holder
5. Small calibration card
6. THREE 3D scanner with wireless antenna
7. 12V 5A power brick with 10 foot cable
8. Mini tripod with flexible legs
9. Premium carrying case

THREE 3D Scanner - Perfect Focus for Perfect Scans

With an astonishing range of capabilities, built-in software, and unique automatic focusing cameras, THREE will be an essential part of your 3D workflow for years to come.

Capture Complicated Real Life Objects

Skull Comparison Washer Comparison Propeller Comparison Teapot Comparison


Up to 0.033 mm Accuracy

Distance from Scanner Z Accuracy Resolution Scan Area
220 mm 33 µm 37 µm 155.52 mm x 115.3 mm
400 mm 150 µm 65 µm 273.72 mm x 202.90 mm
700 mm 400 µm 114 µm 480.13 mm x 356 mm

High-Precision THREE 3D Scanner for Small Objects

Automatic Focusing Cameras

Focused cameras mean accurate scans. THREE puts the power of focusing cameras into your hands.


THREE 3D Scanner – Best 3D Scanning App for Reverse Engineering

No Tracking Dots Needed

THREE’s feature-based alignment is faster, cleaner and foolproof



Massive Object Capture Range

Capture jewelry or capture engine blocks - the highest levels of accuracy


THREE 3D Scanner – Capturing Intricate Details for 3D Printing

Powerful Built-In Software

Incredibly powerful, incredibly simple, standalone, self-computing software works with any operating system.



ChromaSpecTM Color technology

 Beautiful, full-color scans with no “invisible colors”


Matter and Form THREE 3D Scanner

Engineered for a Lifetime

The highest quality parts: aluminum case, sony optical sensors, TI-driven DLP projector


THREE can even scan black objects

Hold the Scanning Spray

Better than blue laser, better than white light. THREE captures all colors, including those that blue lasers miss.

Technical Specifications

NameMatter and Form THREE 3D Scanner
SKUMFSTHREE
TechnologyStereo camera structured light with focusable cameras
CPUQuad-core 64bit SoC 1.5GHz with Integrated GPU
RAM4 GB
Internal Storage16 GB
ProjectorDLP MEMS mirror
Camera SensorSony 13 megapixel
Scan Speed4 seconds
Processing Speed10-15 seconds
AlignmentAutomatic / Point-pick
Scan ModesAutomated Turntable / Single Shot Scan
Scanning EnvironmentIndoor and Outdoor (shaded)
Texture / Color ScanningYes
Minimum Capturable Feature Size0.2 mm
Maximum Capturable Object SizeTheoretically unlimited. Practically, 100 cm³
Scanner Weight709 grams
Scanner Dimensions251mm x 119mm x 31mm
Operating SystemsANY operating system that supports a modern web browser
Devices SupportedANY device that supports a modern web browser
API AccessYes
Open Source Project SupportYes
User-Custom Programming (Edge Computing)Yes
Connection TypeWIFI / Gigabit Ethernet / Hotspot
Output FormatsOBJ, PLY, XYZ, GLTF, DAE, STL, FBX
Power Supply Input100 - 240V AC, 50/60Hz
Power Supply Output12V 4A
  • Preparing to turntable scan a water pump.

    Perfectly focus each camera by merely clicking!

  • Learning the settings is easy -THREE's built-in tutorial walks you through everything in 5 minutes.

  • THREE comes with both automatic alignment and user-directed point pick alignment.

    Here, point pick is being used to align scans of different sections to form a completed result.

  • The aligned water pump.

What's in the box

1. Wired turntable, with silicone top. Capable of turning up to 20 lbs
2. International power adapter plugs
3. Large calibration card
4. Calibration card holder
5. Small calibration card
6. THREE Scanner with wireless antenna
7. 12V 5A power brick with 10 foot cable
8. Premium mini tripod with flexible legs
9. Premium carrying case

  • Free Shipping

    CA, US, UK, EU

  • 2 Year Warranty

  • Customer Service

FAQ

How does THREE work?

THREE features focusable 13 MP Sony optical sensors, a built-in CPU and GPU, a state-of-the-art DLP projector, and WIFI/ethernet connectivity.

Extraordinary, built-in software takes full advantage of THREE's hardware to capture and process 33 micron scans in about 20 seconds.

THREE's unique focusing cameras accurately "see" everything clearly - so you get incredible scan results from the tiny embossing on a coin all the way to a whole car engine.

How is THREE different from other 3D scanners?

Unlike most scanners, THREE is a standalone, self-computing 3D scanner with built-in software that does all the scanning, processing and storage on the device itself. This means it can work with any computer, Chromebook, iPad or tablet.


THREE also gives you the highest-quality scan results across a truly extraordinary range of object sizes, where most other scanners are heavily limited in size and distance.

What kind of computer do I need to use THREE?

THREE is the only 3D scanner that will work with ANY computer, iPad, Mac, tablet, Windows, Chromebook or Linux. All you need is a web browser, because THREE's standalone, self-computing software is built-in.

3D scanning with THREE means no software to install, no yearly software licensing fee, no SAAS, no cloud, no expensive video card and no expensive computer required, and no worries that a future operating system update will render your investment worthless.

With THREE, you're ALWAYS ready to scan.

Why is THREE more expensive than some other 3D Scanners?

Cheap 3D scanners come with poorly written software that makes it difficult and frustrating to scan. THREE is built from the ground up to be powerful and easy to use, and is featured in professional labs and public schools around the world.

Cheap 3D scanners lack precision and accuracy. THREE can capture details as small as the embossing on a coin.

Cheap 3D scanners need expensive computers just to work. THREE is a stand alone device that can use the computer or tablet you already own.

THREE is built to last a lifetime. No matter how OS updates evolve or what the future holds for Matter and Form, THREE is an enduring investment in high performance 3D scanning.

What are THREE's scan speed, resolution, & scan distance?

Capture time: 4 seconds.
Processing time: 10-15 seconds.
Projector frame rate: 60 fps.
Scan object distance to camera: 220 mm to 700 mm (8.66" to 27.56").
Resolution: 37 microns @ 220 mm, 65 microns @ 400 mm, 114 microns @ 700mm.
Z-accuracy: 33 microns @ 220 mm, 150 microns @ 400 mm, 400 microns @ 700 mm.
Minimum capturable feature size: 0.2 mm (0.0078").
Maximum capturable object size: 2 m cubed (70 cubic feet)

Isn’t blue light the best? How does ChromaSpec™ work?

Contrary to popular belief, blue light doesn’t automagically deliver higher-quality scans. Blue light scanners struggle to capture certain colors, so scanning spray is almost always required.

THREE’s breakthrough ChromaSpec algorithm uses the full color spectrum to detect and process different-colored areas of the object.

With THREE, most of the time you won’t need to worry about scan sprays. Instead of messing around, trying to get the settings just right, THREE lets you quickly get the scan you need, and keep your project moving forward.

Tell me about the API. Does that cost more?

THREE has a free and included built-in API and on-board processing, so if you want to get into some really cool vision system hacking, it’s ready to go.

Example projects and documentation are available in Github.

3D scanning APIs are really expensive, but when you get THREE, the API is included and it will always be up-to-date!

Customer Reviews

Based on 13 reviews
85%
(11)
15%
(2)
0%
(0)
0%
(0)
0%
(0)
T
Tom Lewellen
Best scanner I have used yet

This is the fifth 3D scanner have owned over the past 12 years. It addresses all the limitations I had with previous scanners while being easy to use. Lots of options to maximize the quality of the scan while minimizing scan time for the wide range is objects we scan. The versatility is beyond what we had hoped for when we backed the kick starter project

J
Jordan Cain
A Scanner That Punches Far Above Its Weight

THREE is a powerhouse, plain and simple. I've been scanning professionally for almost 5 years now, having used offerings from Artec, Einscan, and Faro. Its ability to capture surfaces that most other scanners struggle with, the detail retrieval, ease of use, flexibility and painless processing, are all worth noting on their own. But putting all of that under a prosumer price point makes this powerful little scanner something to behold. Plus, the synchronized turntable is a cherry on top of the sundae that is THREE.

This review is of the initial release and there are areas lacking like texture capture, but it can be improved on the user's side with decent lighting. Amazingly, this is the only real gripe I've had with it and it's minor. There were concerns on reddit before its launch that the 16GB of storage would be too little, but after scanning everything that was scannable on my desk at the highest density possible, I'm 22 projects in on the scanner and the storage is not even half full. I'm not sure how they are doing it, but it seems they have tapped into quantum physics and are storing scan data in a pocket dimension (don't quote me on that).

In summary, I am exceedingly happy with what THREE can do and I look forward to scanning literally everything I can get my hands on!

B
Bogdan Anagnastopol
Great!

Although I was skeptical because I couldn’t find much information about the MAF scanner, I took a risk, and I don’t regret it. From the first use, everything is intuitive and fast. The software integrated into the device does a very good job, but further processing in another software will be needed for more precise or specialized editing. I am extremely pleased!

K
Kris Ranes
Great Scanner

THis scanner is wonderful it will scan large and small with little efforet. I look forward to it making my life easier

J
Jean-Baptiste Gibier
Three for Healthcare

We use 'Three' for scanning in the healthcare field. Its ability to operate autonomously and without a connection to the hospital network has really made its implementation easier. That's a big plus. Regarding acquisition, we are satisfied with the results obtained with the stage and with the simplicity of use. We have more difficulties with the acquisition of objects off the stage. But overall, the quality-price ratio of Three is fabulous.
